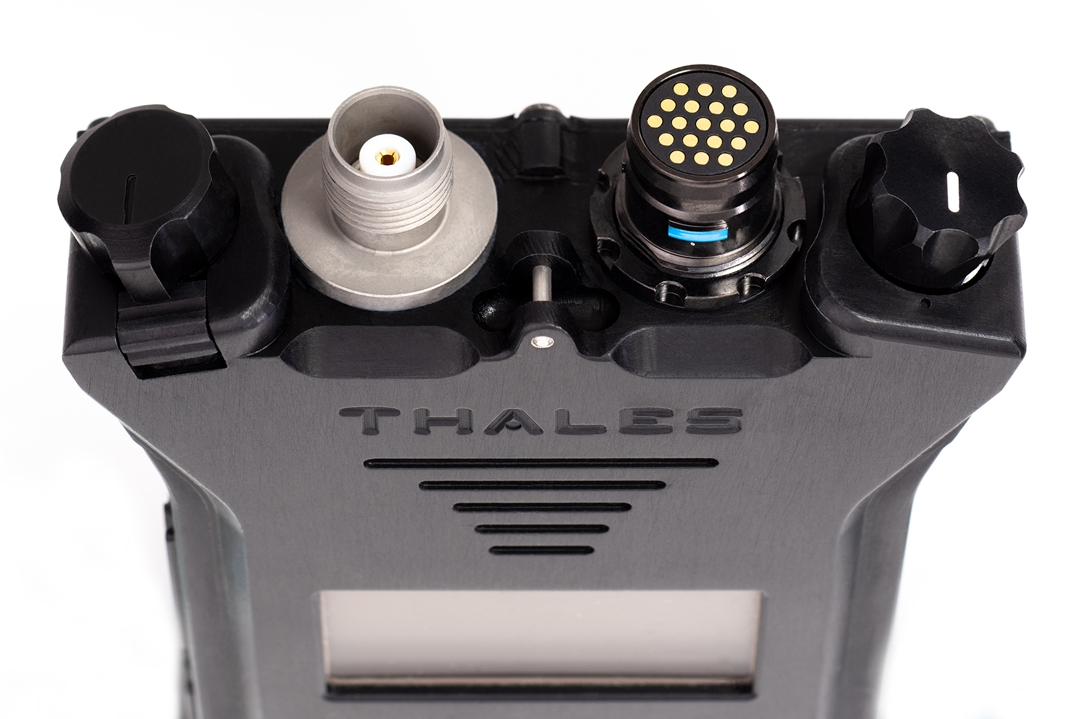

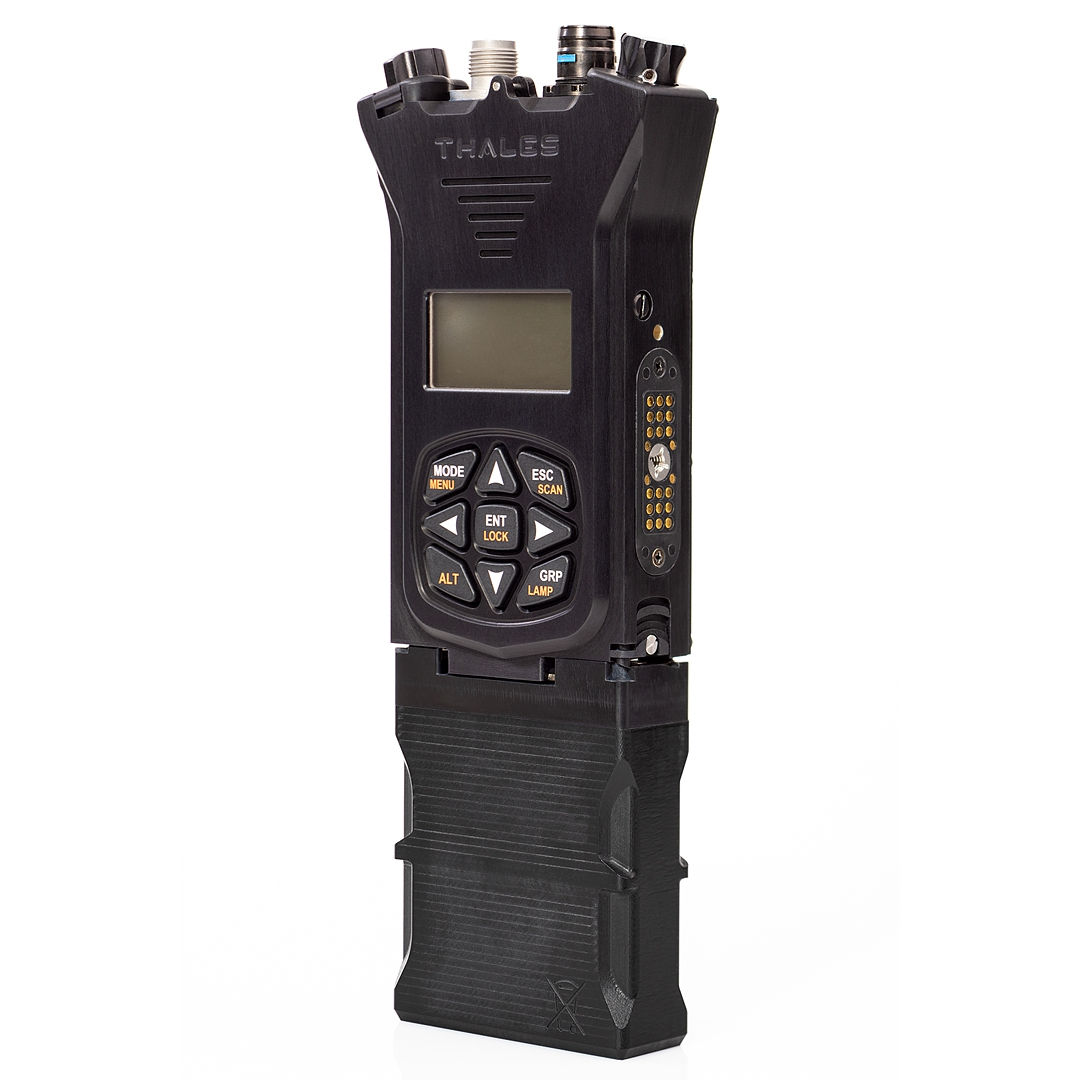

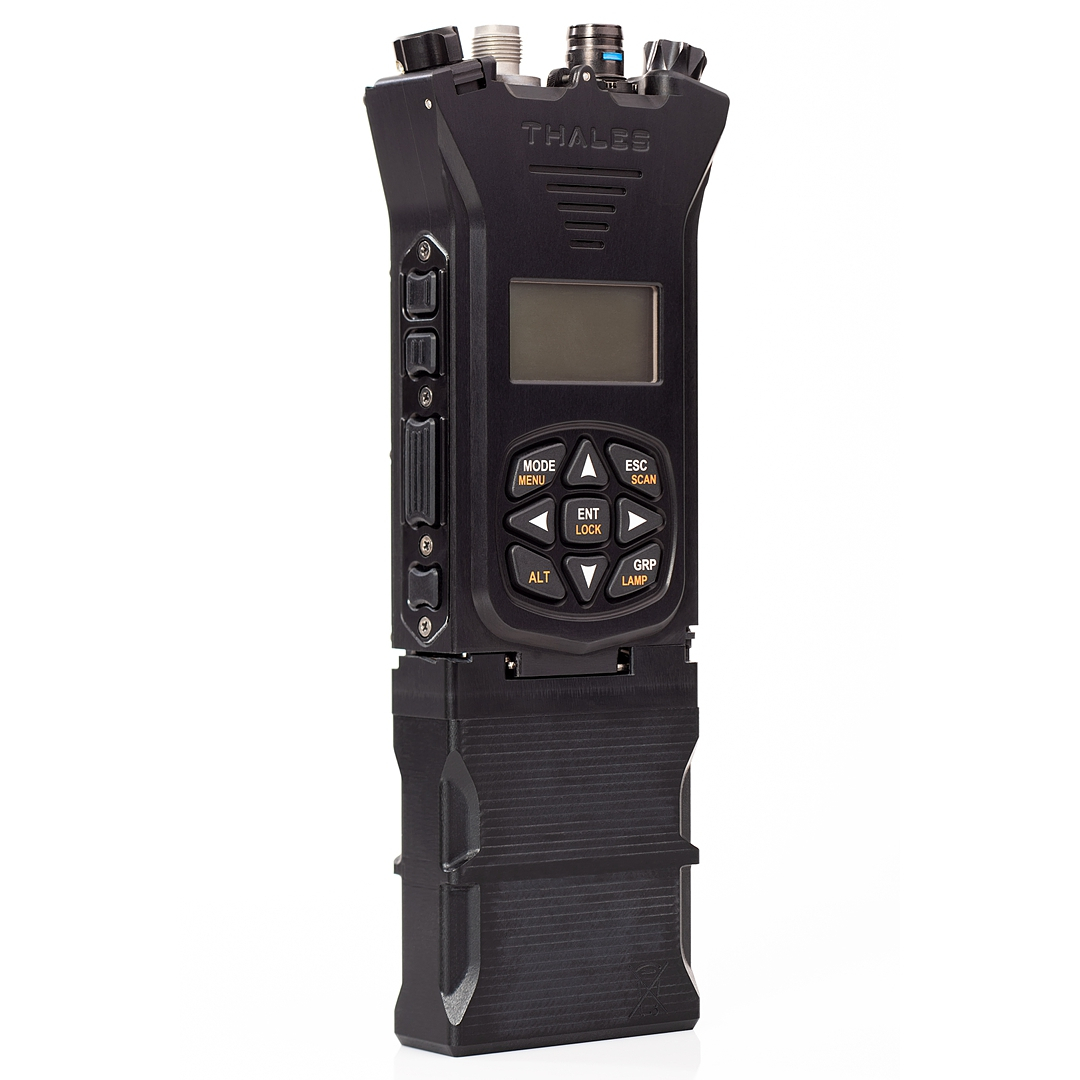

The AN/PRC-148E Spear is the smallest and lightest
multiband handheld radio available today.
The AN/PRC-148E is a combat-proven handheld radio that is the smallest, lightest tactical handheld radio covering the 30–512 MHz frequency range. The software defined radio supports a wide variety of tactical Line of Site and SATCOM waveforms providing interoperability with a full range of legacy tactical radios. The suite of waveforms available on the AN/PRC-148E is the result of over 15 years of waveform and software development and its programmable cryptography supports the requirements of the National Security Agency’s (NSA) Crypto Modernization program. The AN/PRC-148E Spear features a simple to use human machine interface — minimizing training requirements, enabling rapid fielding, and providing the reliability that warfighters have trusted for many years.
Key Features
- Smallest and Lightest, Single Channel Handheld Radio Available
- Radio over IP agnostic with small form factor MANET radios
- LTAC enabled provides commercial SATCOM capability
- Type-1 Certified Programmable Encryption Engine (AIM)
- 2M/20M Immersible
- Simple, Intuitive HMI
- 256 Programmable Presets
- Rechargeable Lithium-Ion 3.5 Ah
- Compliant with the Universal Battery Charger (UBC) Family of Tactical Chargers
Technical Specifications
Physical Parameters
Length: 5.2 inches (13.21 cm) (excluding antennas)
Width: 2.6 inches (6.60 cm) (with battery attached, excluding antennas)
Depth: 1.8 inches (4.57 cm)
Weight: 1.25 pounds Radio and Battery (567 g)
Environmental Specifications
Operating Temperature: -31° to +55° C
Storage Temperature: -33° to +71° C
Immersion: 2M
Waveforms/Modes of Operation
TSM
- Infrastructure-less MANET
- High-speed wireless IP networking
- Self-Forming, self-healing
- Scalable to 200+ nodes
- Robust in harsh environments
- Fast, seamless network join/merge
- Instant adaptation to network topology change
Wideband Channel
Transmit Power: Up to 2 watt
Operating Frequencies: L-UHF: 225–450 MHz, U-UHF: 698–970 MHz, L/S Bands: 1250–2600 MHz
Network Throughput: up to 16 Mbps
Encryption Security: AES-256
Dedicated PTT Voice Channels: supports up to 32 talk groups, AMR 5.9 or MELPe
Occupied Bandwidth: 1.2–40 MHz
Net entry time <1 sec
Supports up to 8 hops for voice and data
Scalable to 200+ nodes in a single RF channel
Multiple simultaneous streaming videos
Position Location Information (PLI) support with Cursor-on-Target (CoT)
OTA Remote Control
Configurations

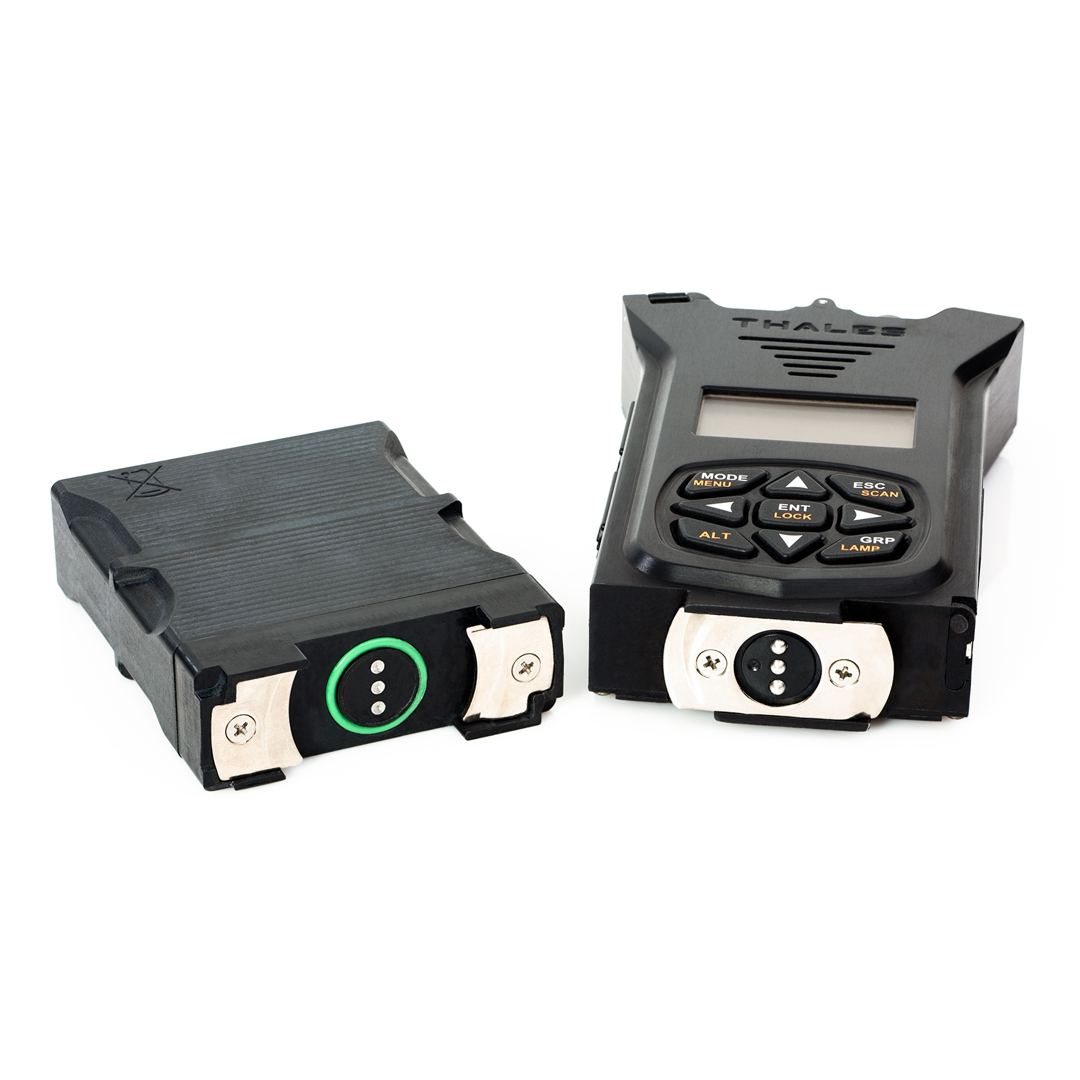

Battery
Size: .94 x 2.48 x 3.5 inches
Battery cell count: 3
Operating time: 10–12 hours
Part number: 4103231-501
Adapter with Cells
In Development
Size: 1.67 x 2.7 x 4.34 inches
Battery cell count: 3 (adapter
only) or 9 (used with 6
cell battery)
Operating time: 10–12 hours
(adapter only); 30–36 hours
(with 6 cell battery)
Part number: 4103240-501
Conformal Wearable
Battery (CWB)
Size: .07 x 7.60 x 8.70 inches
Operating time: 28–34 hours
Nett Warrior Kit
Adapter (no cells)
and 148 Battery
Size: 1.67 x 2.7 x 4.34 inches
Operating time: 20–24 hours
Part number: 4103258-501
