TH340 (2M) Simultaneous 2-Channel Communications

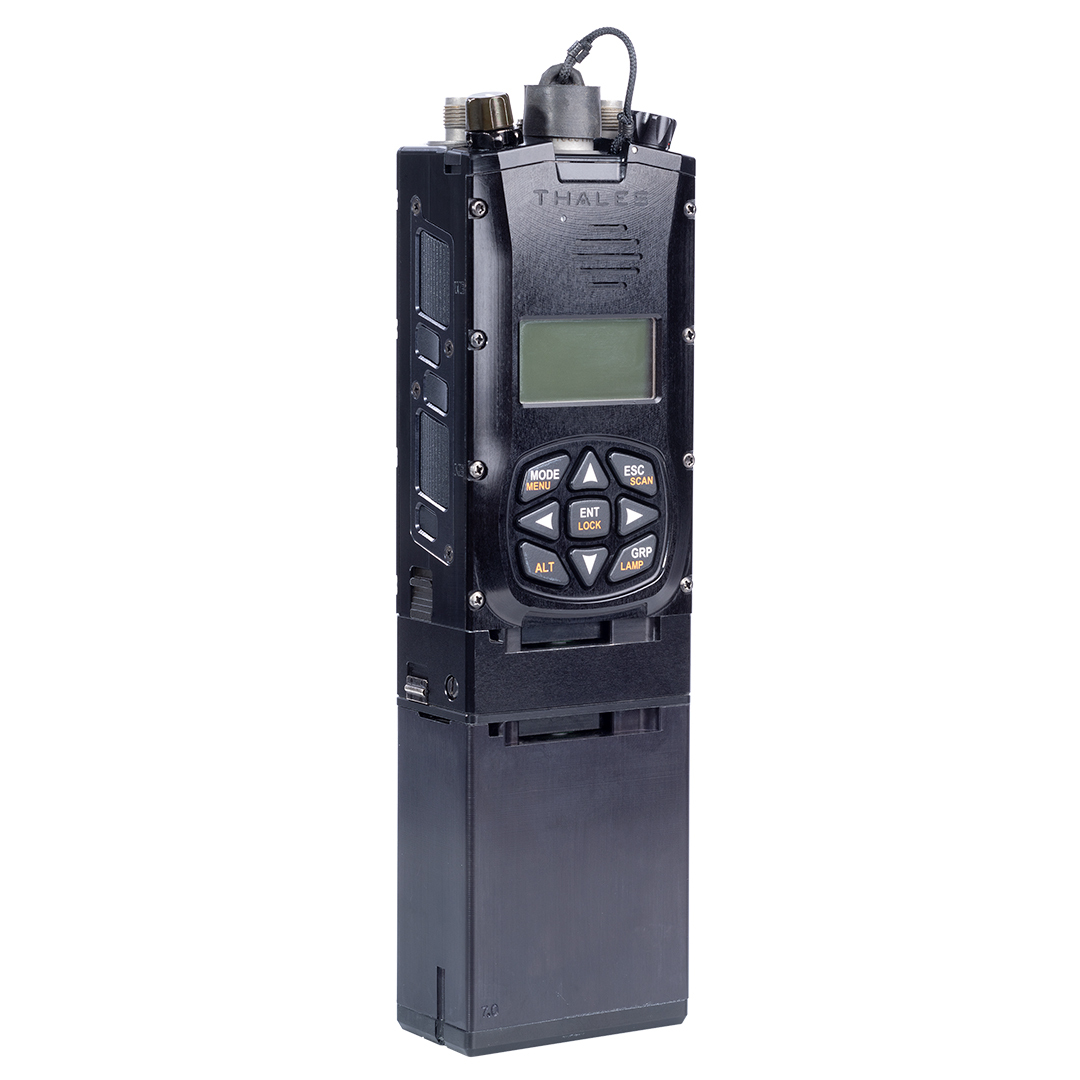

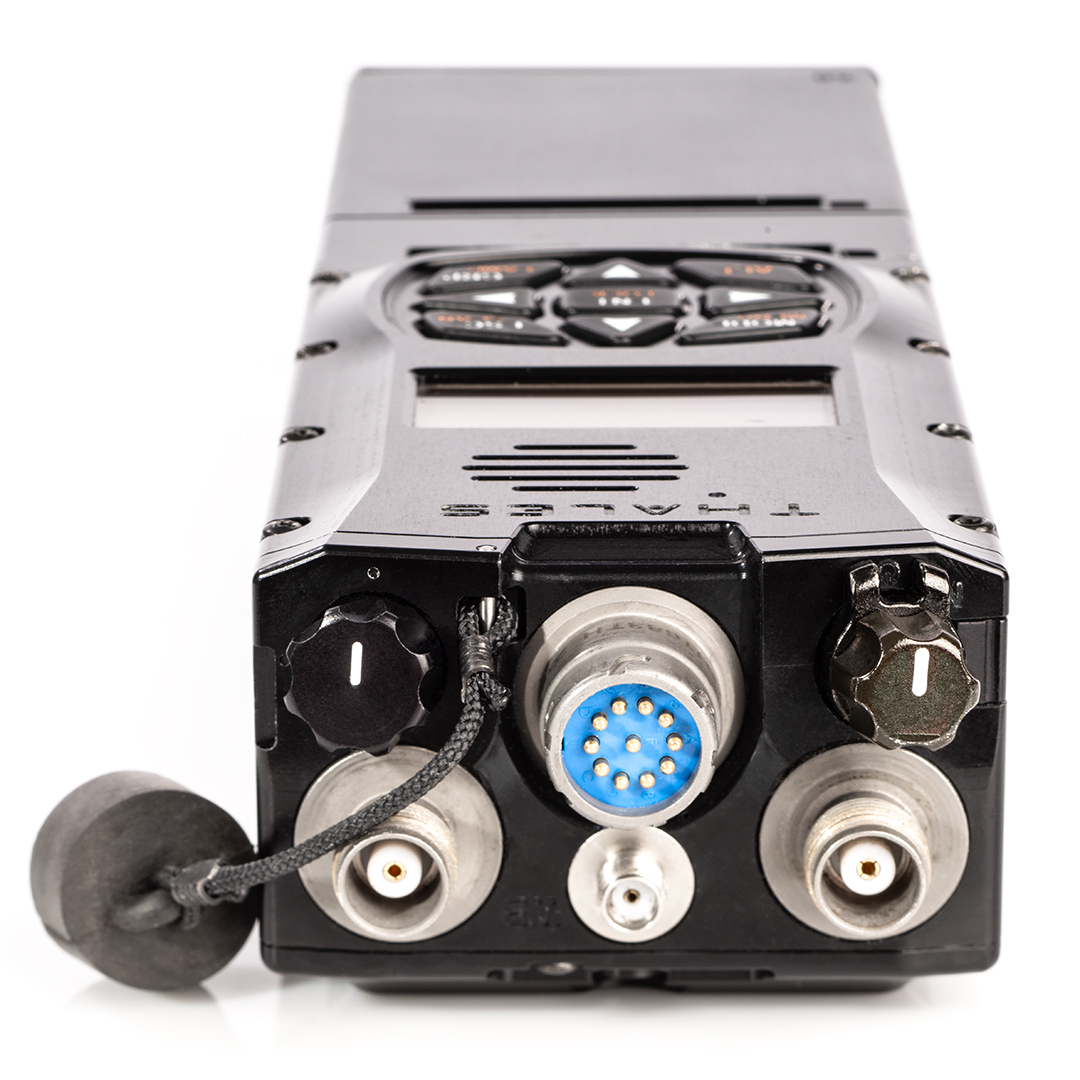

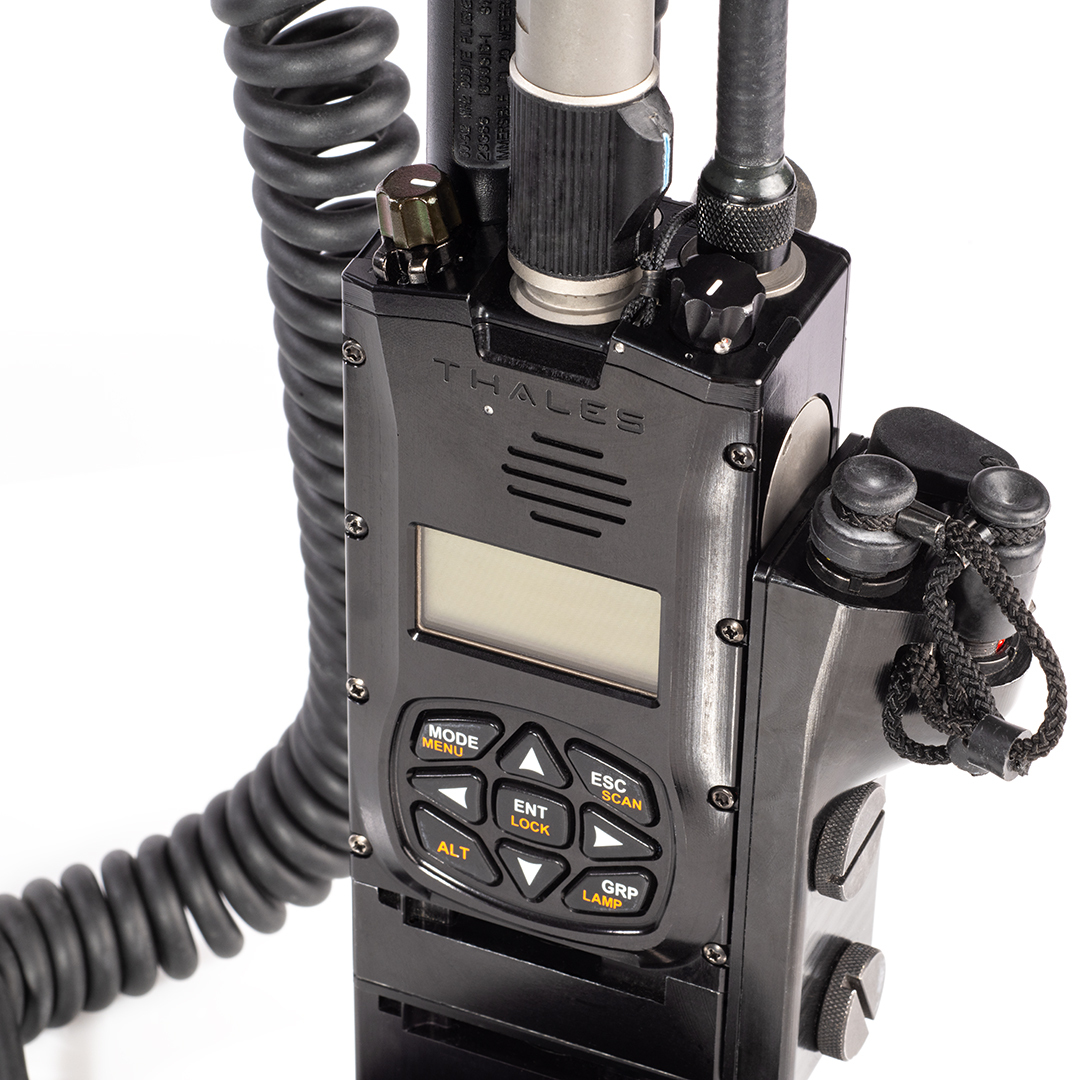

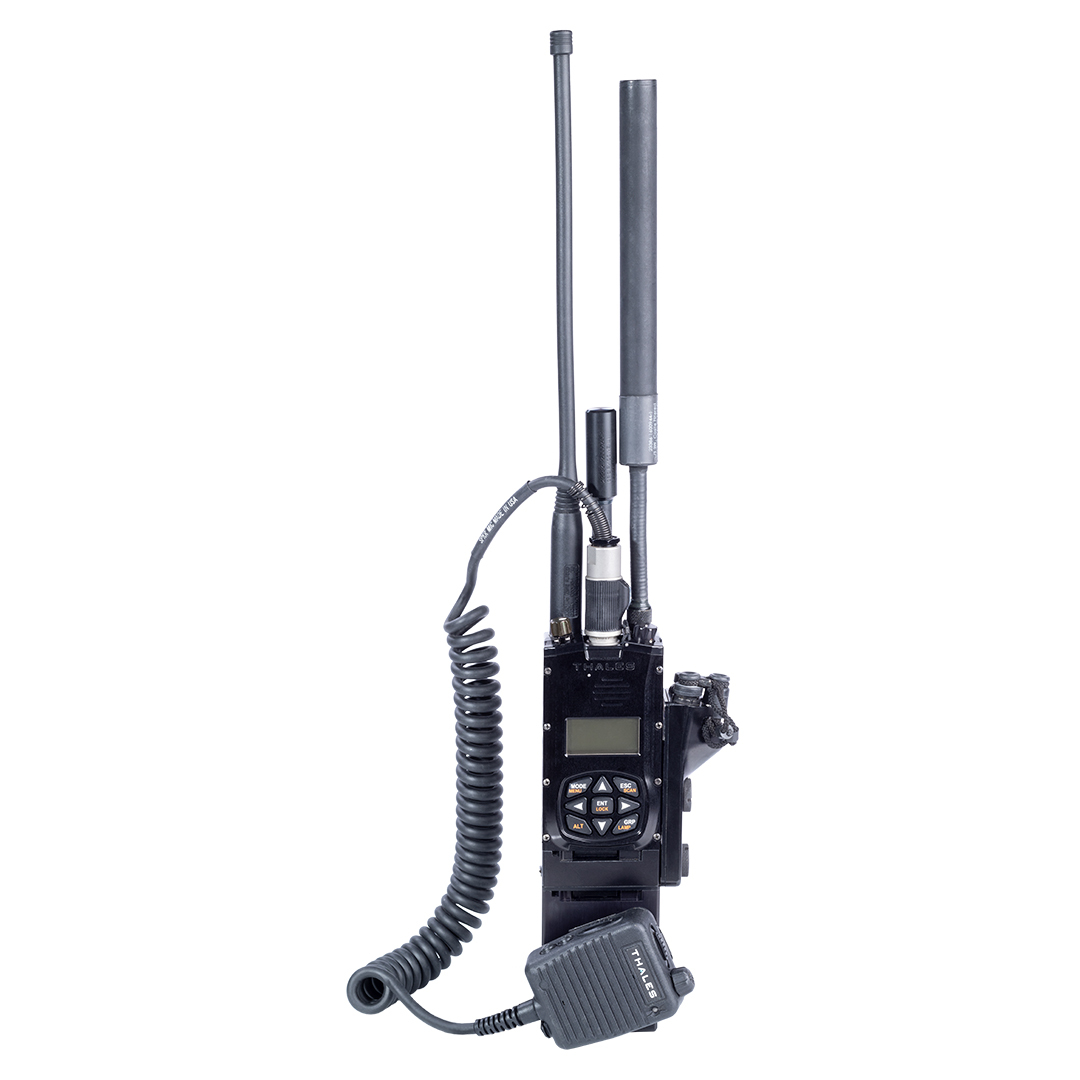

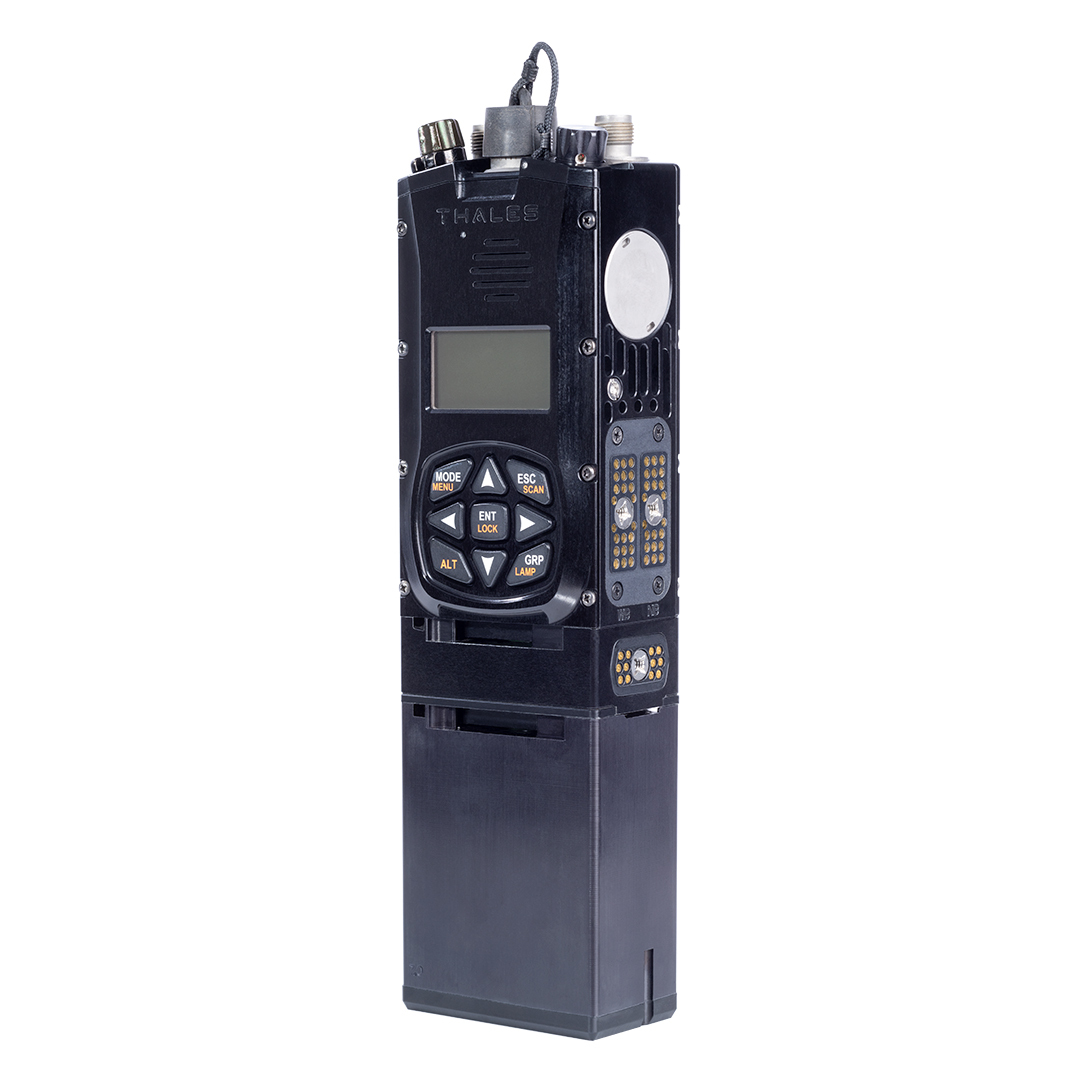

The AN/PRC-148F IMBITR is a small, lightweight, rugged 2-channel radio that equips Warfighters with simultaneous narrowband and wideband secure Type-1 communications, enabling tactical command and control communications in a variety of challenging environments. The narrowband channel operates all legacy tactical waveforms including: VHF/UHF LOS, SINCGARS, HAVEQUICK, as well as commercial SATCOM. The Wideband channel operates the WREN-TSM™ and WREN-NB waveforms from TrellisWare® Technologies, Inc. TSM delivers superior voice and data communications across harsh multi-path and unpredictable dynamic areas, such as caves, on board ships, and urban operational settings. WREN-NB is a resilient waveform designed to operate in near-peer threat environments which combines resilient narrowband fast frequency
hopping waveform with tactical MANET.
Key Features
- Retains the Existing Narrowband AN/PRC-148 JEM Type 1 Capabilities and Waveforms
- Wideband Channel Operating the Type 1 WREN-TSM Waveform for SAB or SBU Security Level
- Future Advanced WREN-Narrowband (WREN-NB) Waveform
- Embedded GPS
- Optimized for RF Challenged Environments
- Improved Narrowband Tx/Rx Co-site Performance Parameters
- L-TAC Commercial SATCOM
- 10W Burst Mode for SATCOM
- Type-1 Certified Programmable Encryption Engine (AIM)
- Rechargeable Lithium-Ion 7.0 Ah
- Compliant with the Universal Battery Charger (UBC) Family of Tactical Chargers
Technical Specifications
- Physical Parameters:
- Length: 8.50 inches (21.59 cm) (with battery attached, excluding antennas) (2M version)
- Width: 2.65 inches (6.73 cm)
- Depth: 1.79 inches (4.54 cm)
- Weight: 2.26 pounds (1026 g) — radio and battery (1043 g)
- Environmental Specifications:
- Operating Temperature: -30° to +55° C
- Storage Temperature: -30° to +71° C
- Immersion: 2M
- Waveforms/Modes of Operation Dependent on Configuration of Radio:
- MIL-STD-188-241-1/-2 (SINCGARS — Standard/FH2E EOM)
- LTAC L-Band SATCOM
- MIL-STD-188-181C, -182B, -183B (SATCOM IW)
- ANDVT (LPC-10, MELP)
- AM/FM
- HAVEQUICK I and II
- Project 25
- Over-The-Air-Cloning (OTAC)
- Situational Awareness
- Retransmission
- AM Swept Tone Beacon
- Narrowband Channel:
- Frequency Range: 30 MHz–512 MHz
- Transmit Power: Up to 5 watt in all frequencies, 10 watt in SATCOM
- Step Size: 5 kHz and 6.25 kHz
- Channel Spacing: 5 kHz, 12.5 kHz, 25 kHz (8.33 kHz future waveform)
- Wideband Channel:
- Transmit Power: Up to 2 watt
- Operating Frequencies: L-UHF: 225–450 MHz, U-UHF: 698–970 MHz, L/S Bands: 1250–2600 MHz
- Network Throughput: up to 16 Mbps
- Encryption Security: Type 1 CNSA
- Dedicated PTT Voice Channels: supports up to 32 talk groups, AMR 5.9 or MELPe
- Occupied Bandwidth: 1.2–20 MHz
- Supports up to 8 hops for voice and data
- Scalable to 800+ nodes in a single RF channel
- Unicast, Multicast, Broadcast IP data support
- Multiple simultaneous streaming videos
- Position Location Information (PLI) support
- WREN-TSM:
- SAB Security
- Infrastructure-less MANET
- High-speed wireless IP networking
- Self-Forming, self-healing
- Scalable to 800+ nodes
- Robust in harsh environments
- Fast, seamless network join/merge
- Instant adaptation to network topology change
- WREN-NB (Optional):
- Resilient long range narrowband waveform with ECCM capabilities
- Interoperable with Katana — NB at SBU Level
- Instantaneous bandwidth: 50 khz
- Frequency Hopping up to 200 Mhz
- Scalability up to 250 nodes in a single data network
