TH140
Field-Proven Crypto Modernized Mounted and Dismounted Communications Solution
The Thales RT-2129 Combat Net Radio (CNR) System equips warfighters with highly secure Crypto-Modernized Command, Control, and Communications (C3) secure voice and data communications for both mounted and dismounted operations. The RT-2129 is a form-fit-function drop-in upgrade of the legacy RT-1523E/F radios and is readily deployable. The Thales CNR radio was developed in accordance with the U.S. Army’s program of record specifications for the legacy RT-1523. In addition to enhancing current communications capabilities, the Thales CNR radio transceivers have been designed to offer full interoperability with new and legacy systems.
The Thales RT-2129 radio system is engineered to meet versatile mission needs as either a mounted solution readily installed into existing or new VRC VAA applications or as a small form factor dismounted handheld. In the mounted application, the radio works with the Embedded Tactical Data Router and as a handheld/manpack, it features a standard interface. In both use cases this enables C2 applications to access the Tactical Internet.
Key Features
- Drop-In Replacement for ll Legacy RT-1523E/F

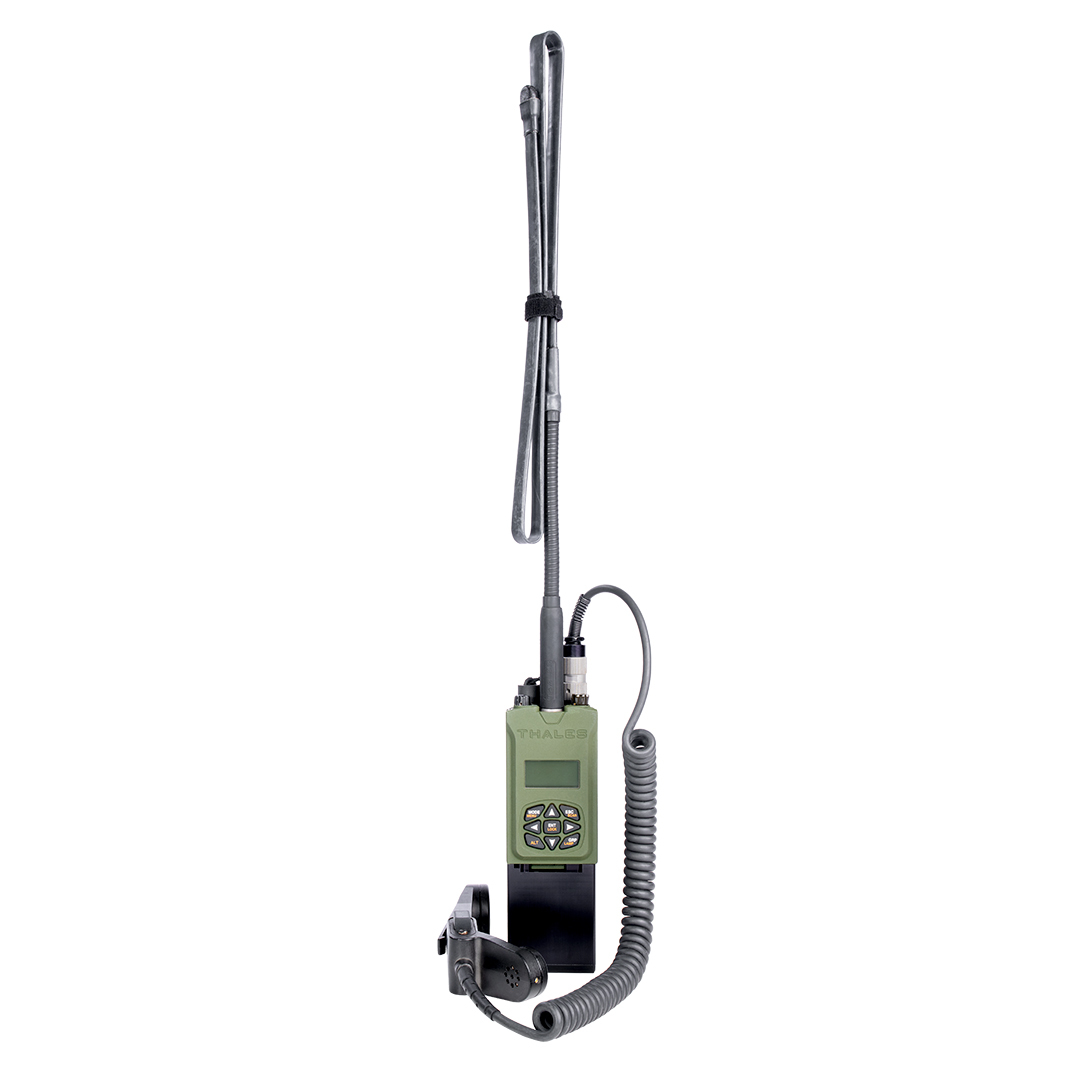

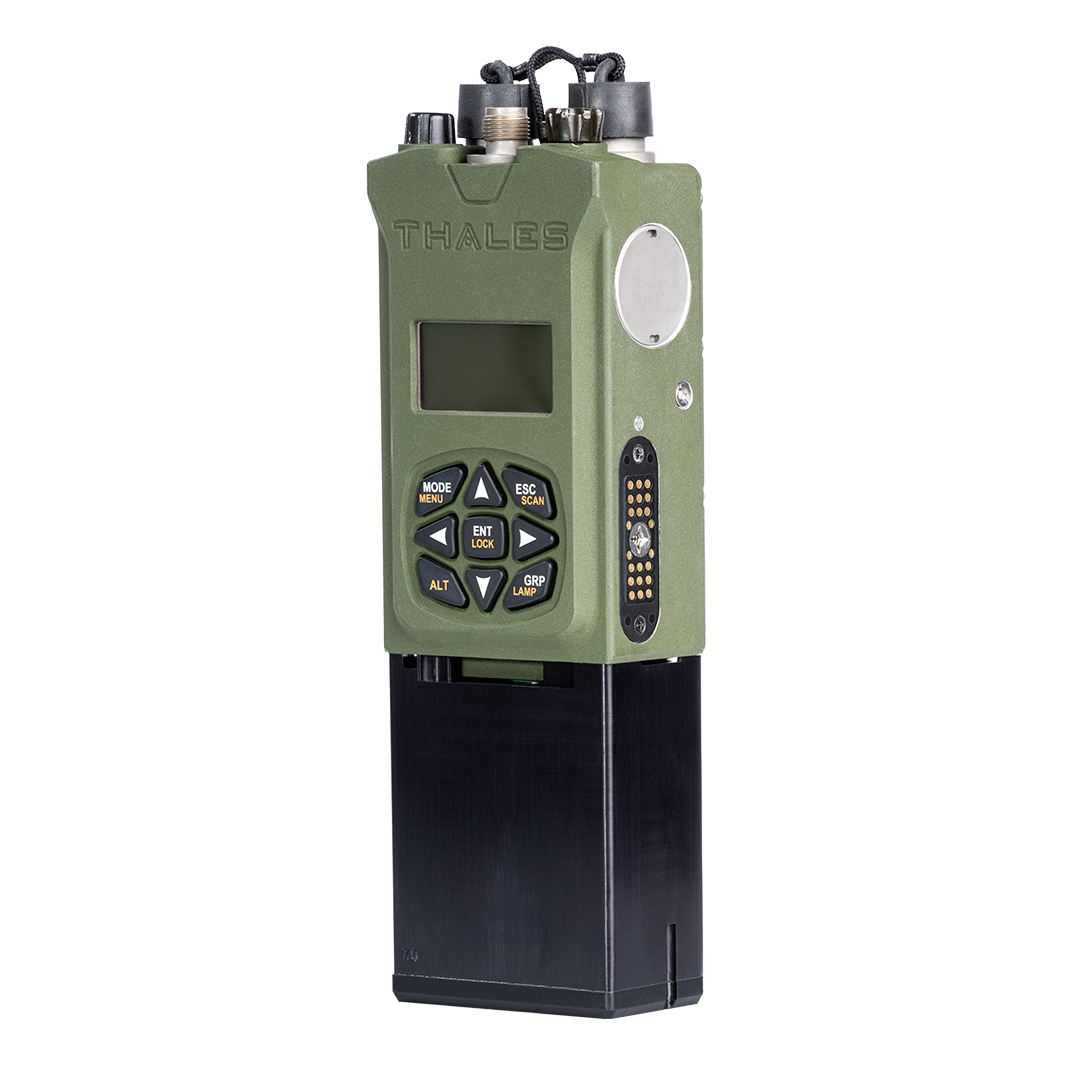

- Reduced Form Factor Dismount Handheld
- Crypto Modernized NSA Approved
- Robust Voice Clarity
- Extremely Easy to Use, No External Programming Required
- Reliable and Durable, Simplified Maintenance
- Supports SAASM GPS for Mounted and Dismounted Operations
- Compliant with the Universal Battery Charger Family of Tactical Chargers
- World’s Most Fielded Tactical Radio Technology
- Robust Voice Clarity
- Interoperable with all Legacy Single-Channel and Next Generation One and Two-Channel Radios
Technical Specifications
Physical Parameters

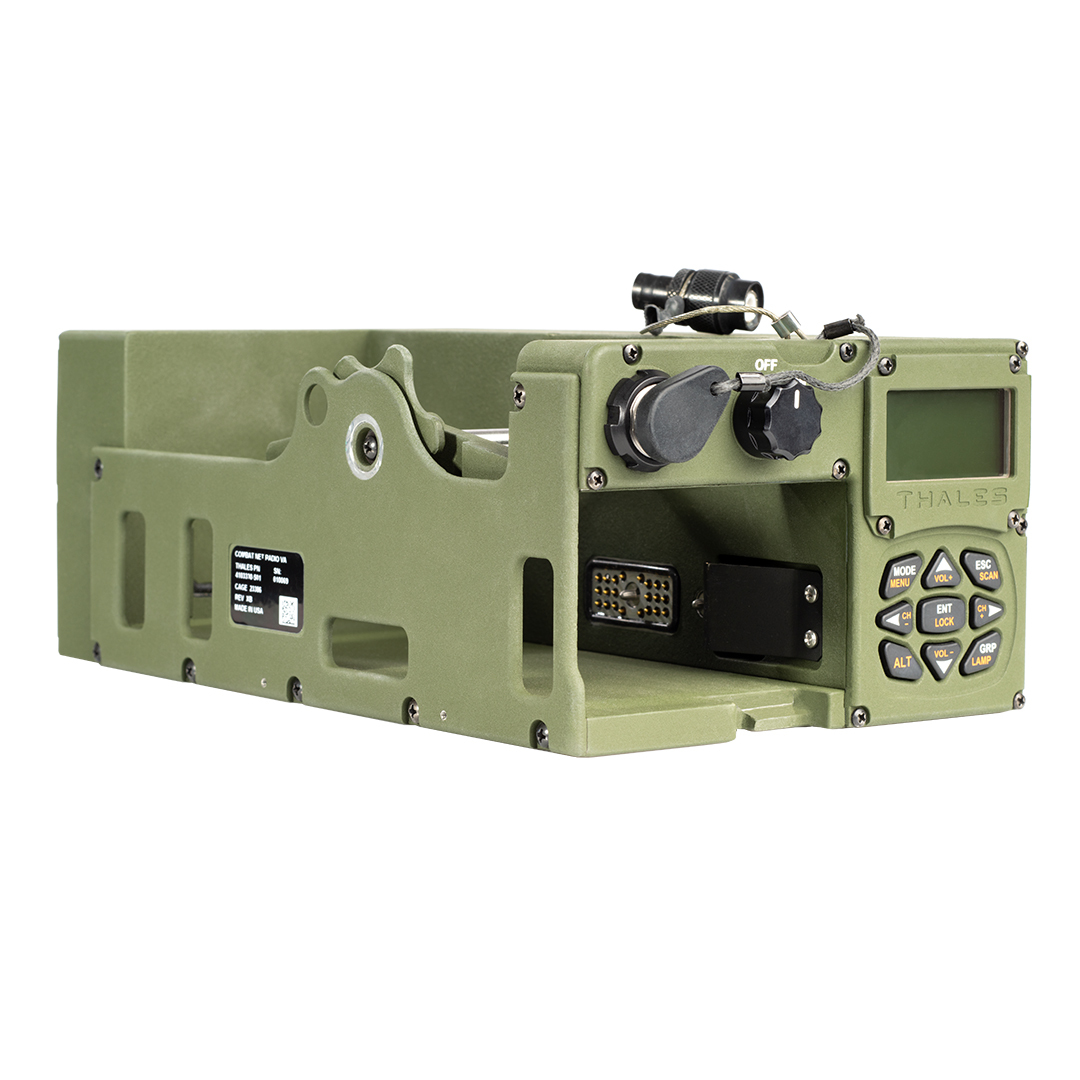

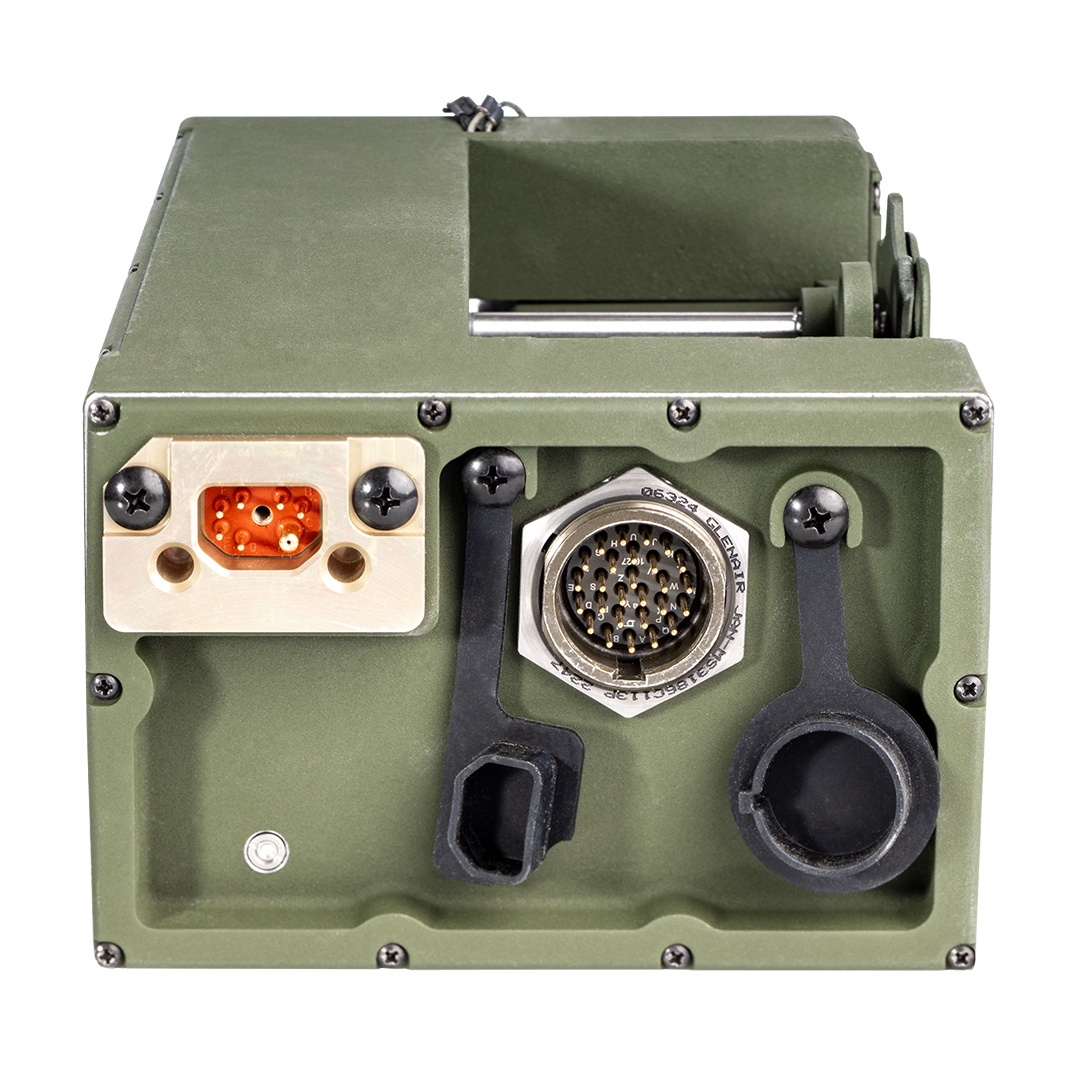

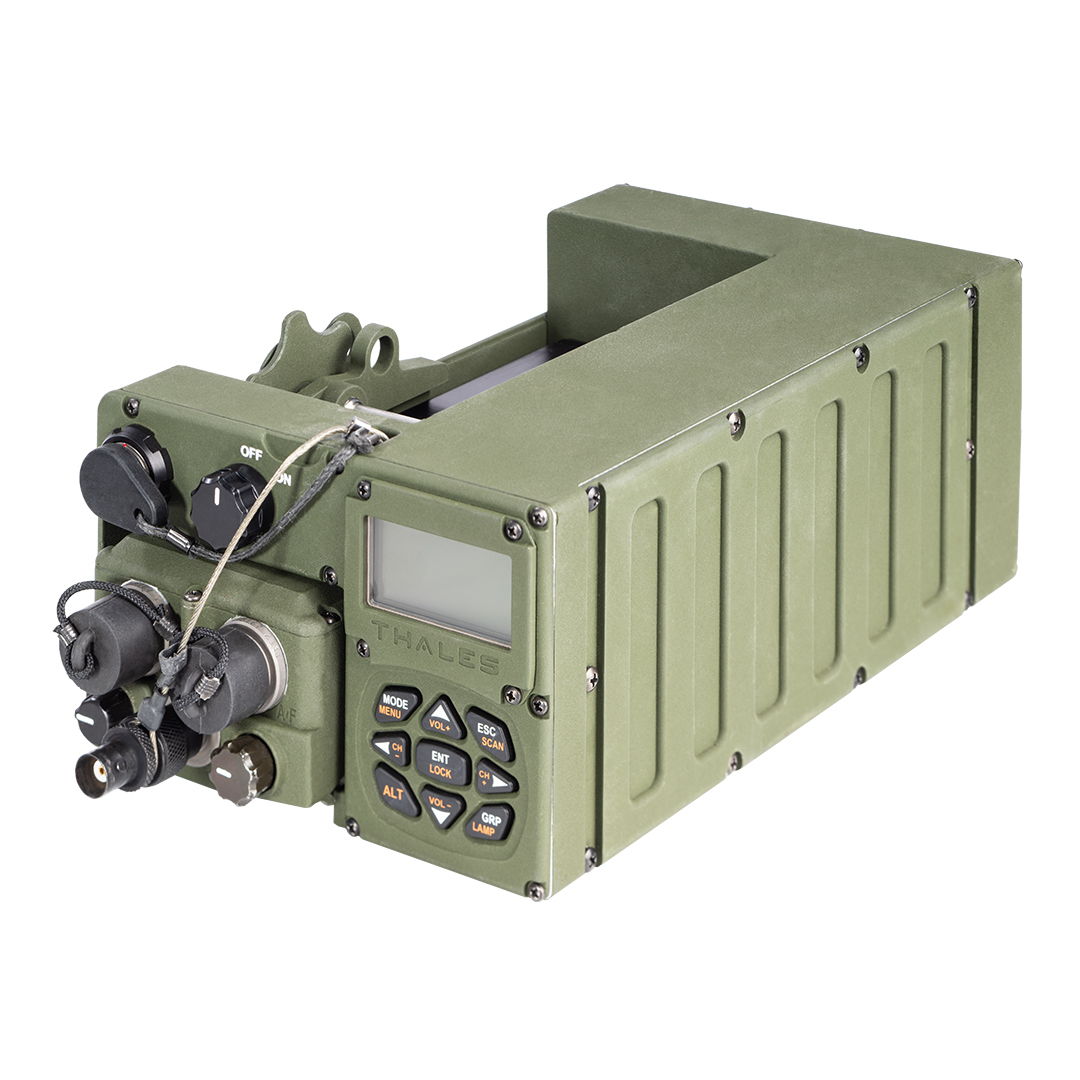

Mounted (Radio, Battery and Cradle Vehicle Adapter)
- Length: 9.95 in (25.3 cm)
- Width: 5.30 in (13.5 cm)
- Depth: 3.40 in (8.6 cm)
- Weight: 5.4 lb (2449 g) — including Battery
Physical Parameters
- MIL-STD-810
- Temperature: -32 °C to +71 °C
- Immersion: 1M (3 ft)
- Shock and Vibration: MIL-STD-810G
- Ballistic Shock: MIL-STD-810G
- Dust/Salt Fog/Rain: MIL-STD-810G
- Humidity: (5%–95% non-condensing)
- MIL-STD-810G
- EMI: MIL-STD-461
- HEMP: MIL-STD-2169B
Optional/Other

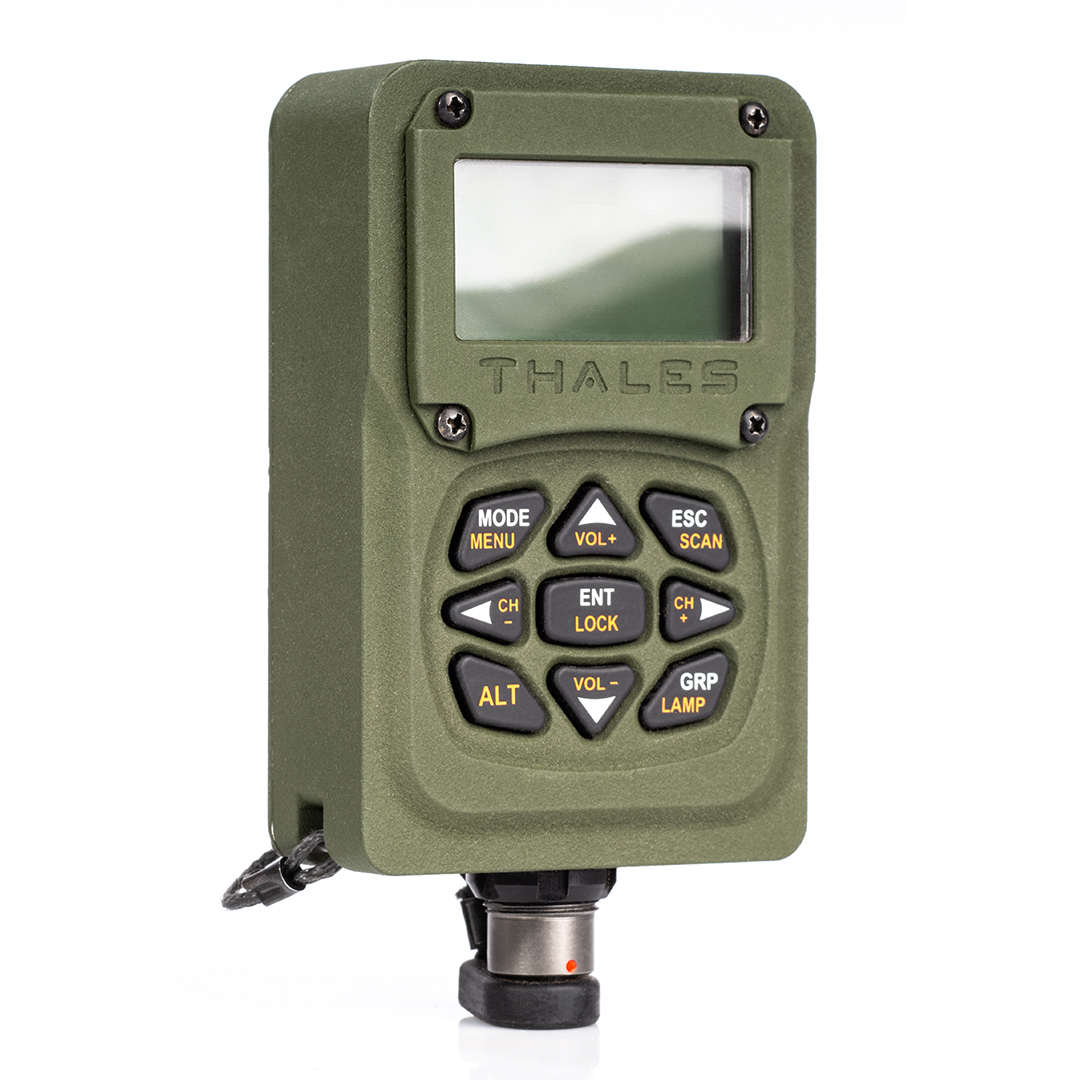

- Dismount Remote Control

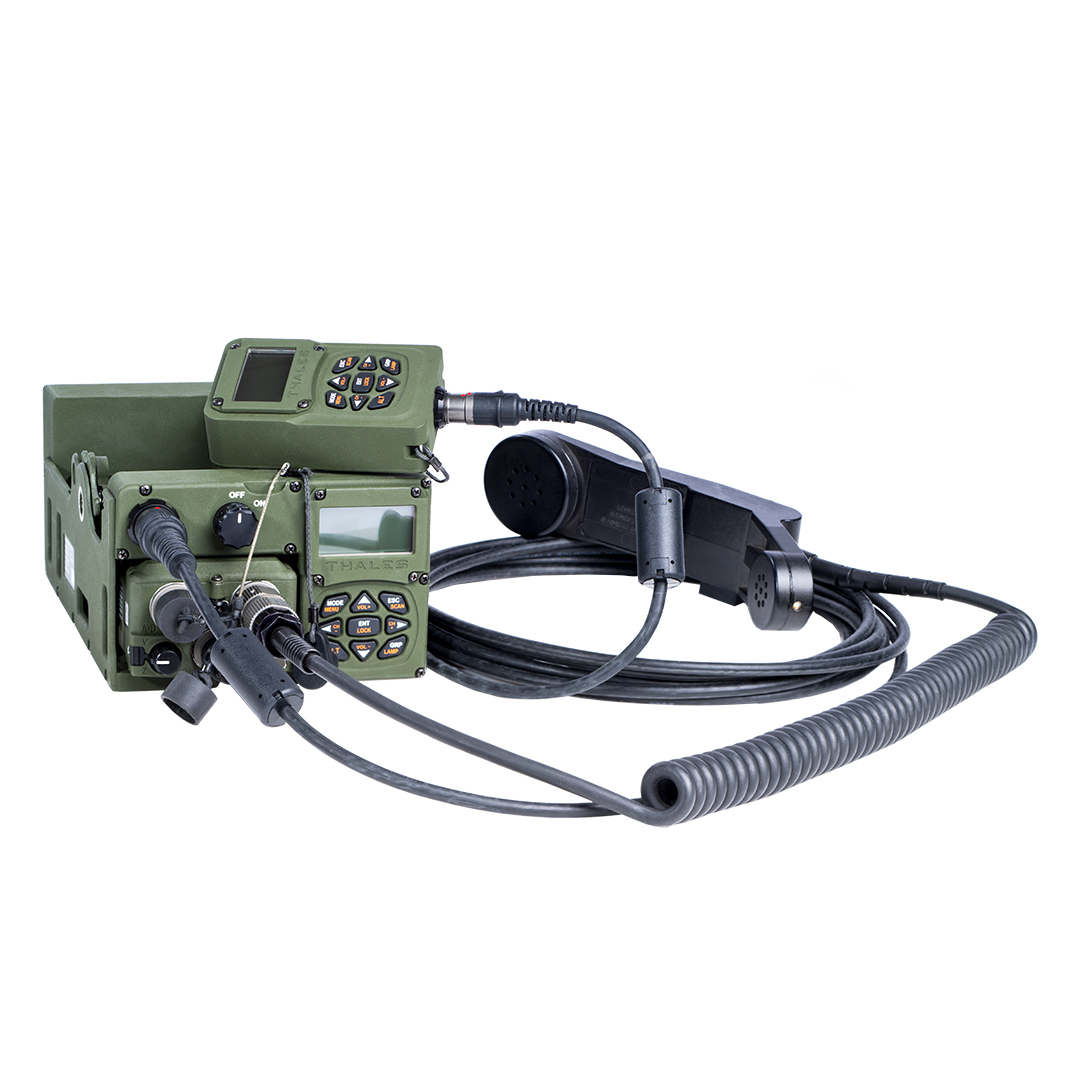

- Mounted Remote Control
- 2 Wire Remote Control: Secure remote control capability for up to 4 km distance
Operating Temperature
- Mounted: -32 °C to +71 °C
- Dismounted: -32 °C to +55 °C
- Storage Temperature: -51 °C to +71 °C
- Nuclear Survivability: A3140904
Waveforms/Modes of Operation
- Waveforms: SINCGARS
- Voice and Data Modes: Single-channel and frequency hopping (FH, FH2, FH3) MIL-STD-188-220C operations with TI X.21 packet data interface asynchronous and synchronous data at 1200, 2400, 4800, 9600, and 16000 bps
- Encryption: Type 1
- Internal Encryption: PT/CT/CT2
RF Characteristics
- Frequency Range: 30 MHz – 88 MHz
- Channel Spacing: 25 kHZ
- Presets: 256
- Power Output: (selectable) 5UmW, 200mW, 5W
Power
- Dismounted: Battery 12–14 V Standard
- Mounted: Vehicle (via CNR Vehicle Adapter (CVA) needed for the mounted configuration VAA)
