Night/Day Standalone Thermal Reflex Optic

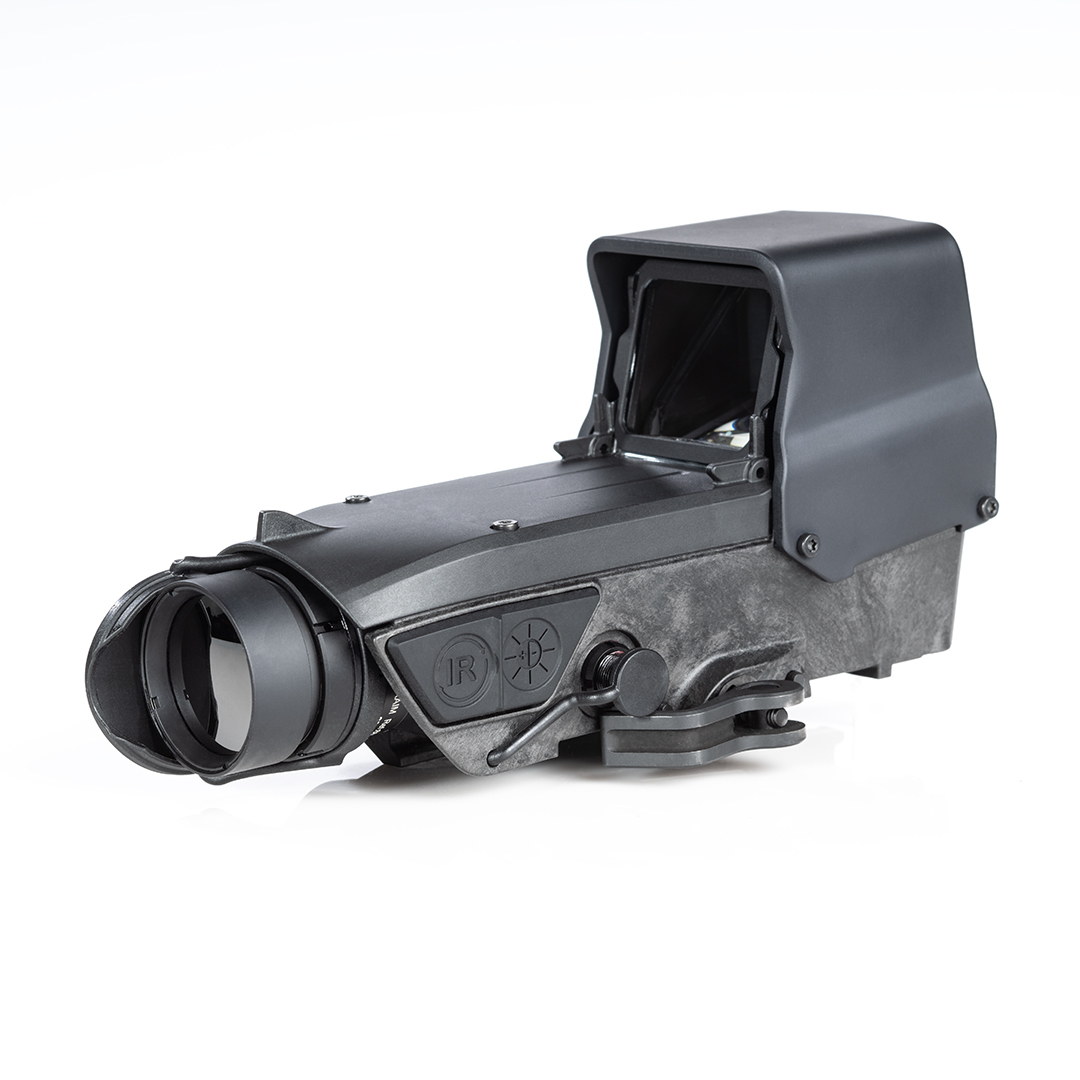

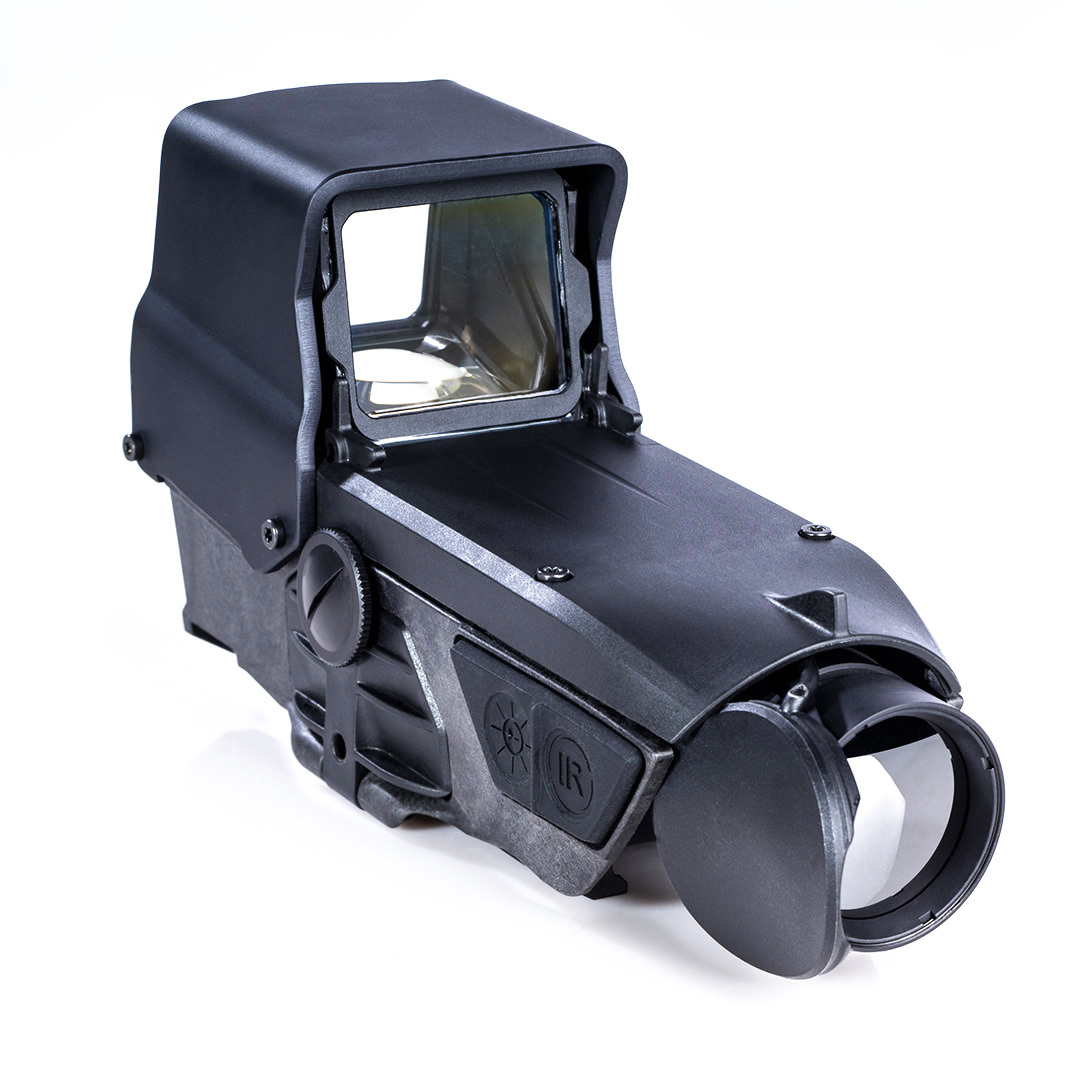

Thales’ HNTR® is an all-in-one day/night Thermal Holographic Weapon Sight that combines a red-dot holographic sight, thermal imager, and concealment defeat into a single, compact, and lightweight device.
Applications
DISMOUNTED SOLDIER/OPERATOR
- Assault Rifles, Light/Heavy Machine Guns (5.56, 7.62, 50 Caliber)

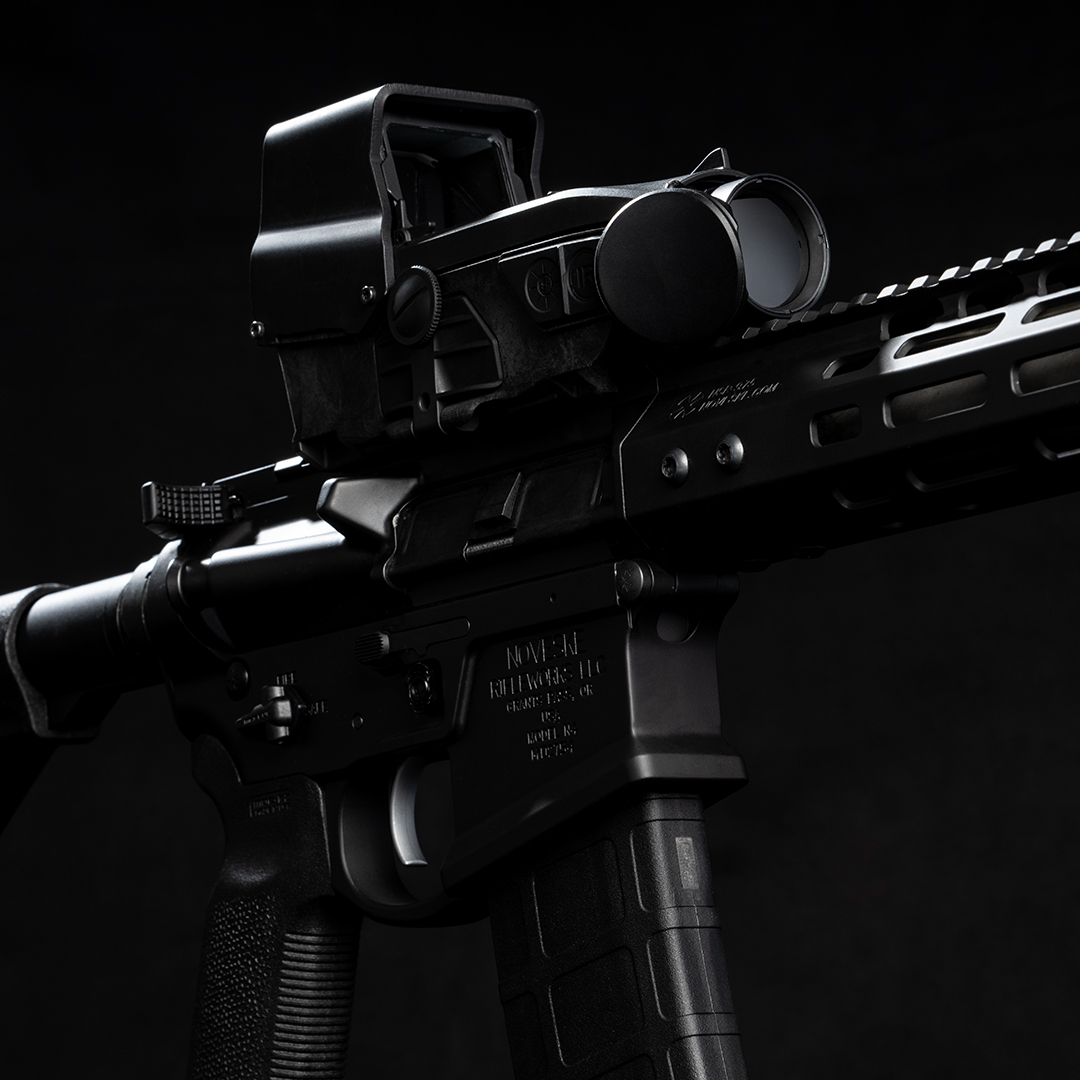

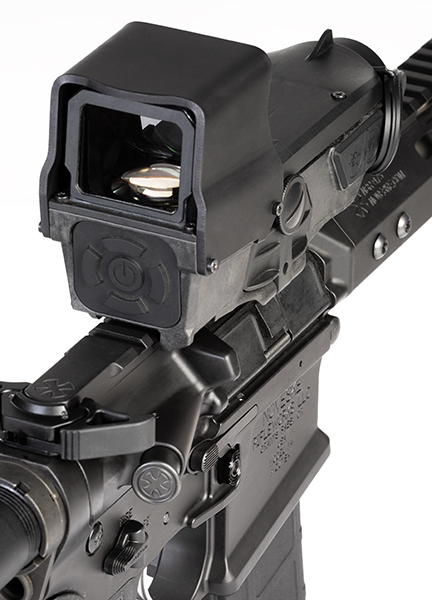

- Compatible with Picatinny rail systems (STANAG 4694)
Key Features
- Enhanced close combat efficiency Night and Day
- Threat concealment defeat capability
- Reflex targeting, both eyes opened, increasing situational awareness and reactivity
- Immediate switch between different configurations according to environment and combat situation
- Tactical situation adaptability (bright/dark environments, transition, smoke)
- Soldier oriented ergonomics
- Compatible with the use of Night Vision Goggles
- Quick transition thermal fusion
- Direct View Optics
- Eye Relief 90mm @l4° Thermal HOV, fixed diopter
- Red dot reticle size l.6MOA
- Magnification lx
- High luminance OLED
- Window size 30x24mm
- Thermal Channel
- New generation sensor with 12 micron pitch and 640×480 resolution
- Digital zoom 2x
- Horizontal field of view l4°
- NUC calibration not required for operation

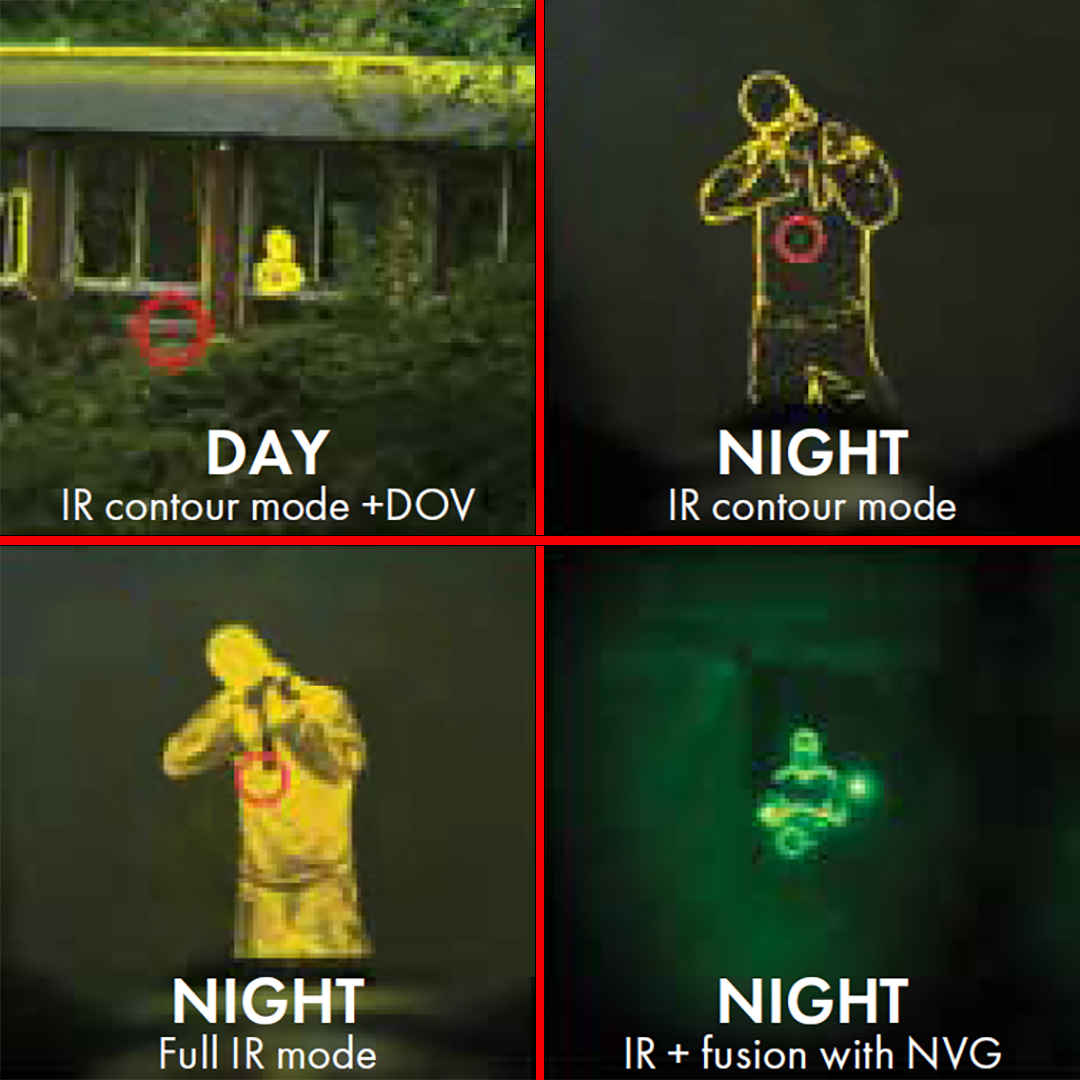

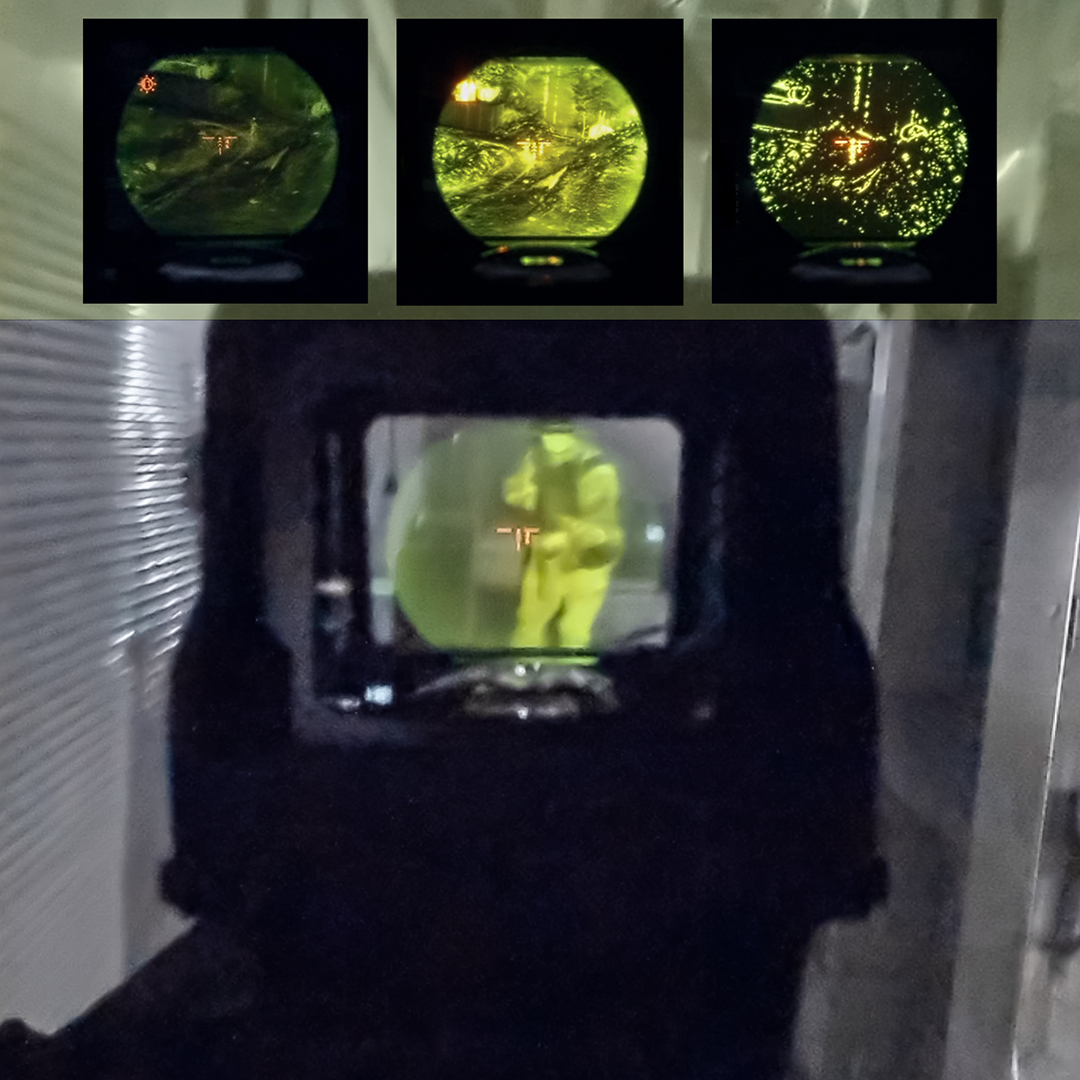

- 3 thermal modes: Outline, Full-IR black-hot, Full-IR white-hot
- Optical Magnifier (option)
- Compatible with magnifier
Technical Specifications
- Weight: <1.3 pounds including batteries
- Length: <6.7 inches
- Power Management:
- 2 CRl23 batteries
- Run-Time >500h reticle >7h thermal
- Functions:
- Concealment defeat (IR/DVO fusion)

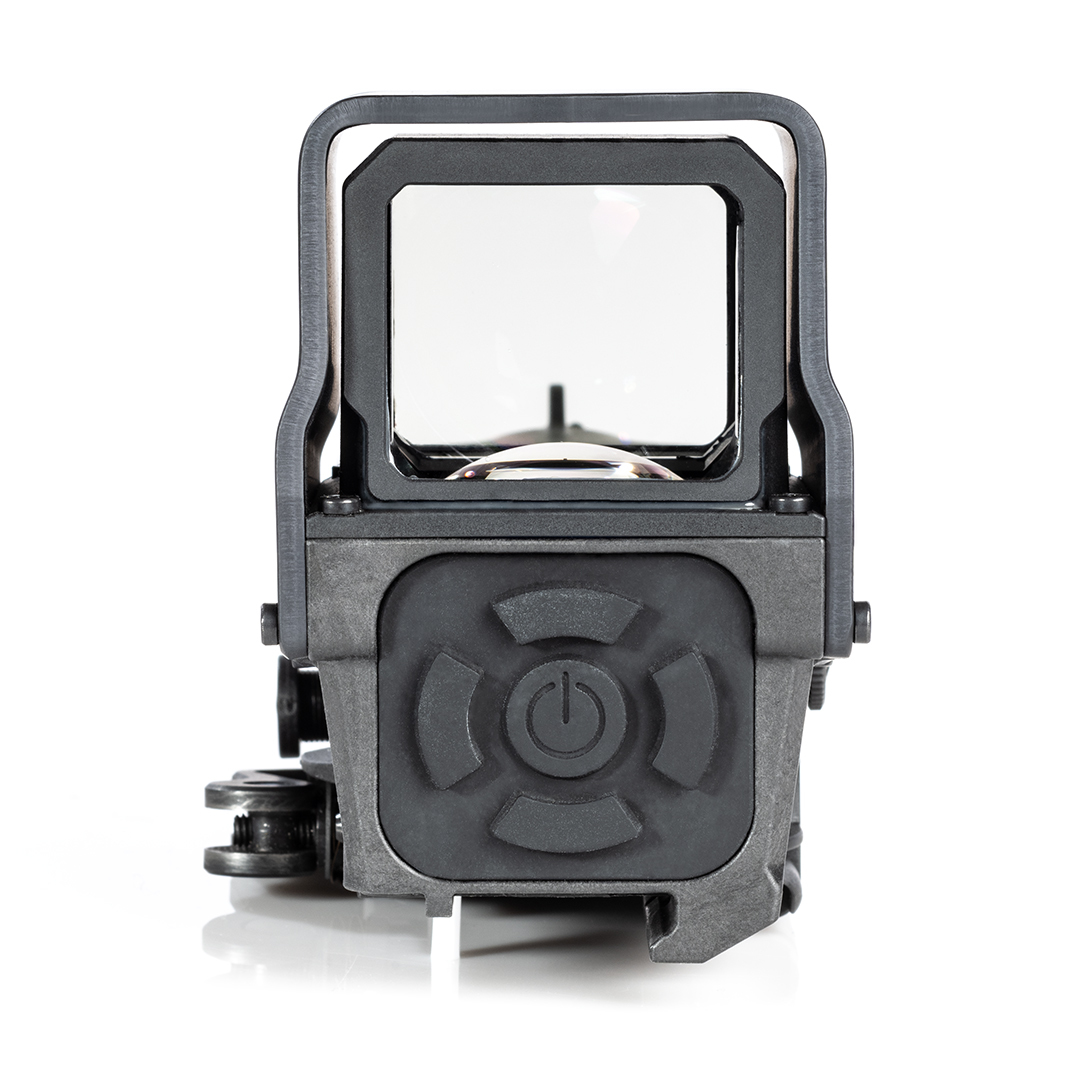

- Same commands to operate all functions
- Remote control, fixed on Picatinny rail, to operate while keeping both hands on the weapon
- IR Capability
- VGA l21m uncooled sensor
- Digital zoom X2
- Horizontal field of view l4°
