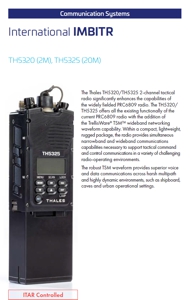

Information Sheet (get PDF)
TH5320 (2M), TH5325 (20M)
The Thales TH5320/TH5325 2-channel tactical radio significantly enhances the capabilities of the widely fielded PRC6809 radio. The TH5320/TH5325 offers all the existing functionally of the current PRC6809 radio with the addition of the TrellisWare® TSM™ wideband networking waveform capability. Within a compact, lightweight, rugged package, the radio provides simultaneous narrowband and wideband communications
capabilities necessary to support tactical command and control communications in a variety of challenging radio-operating environments.
The robust TSM waveform provides superior voice and data communications across harsh multipath and highly dynamic environments, such as shipboard, caves and urban operational settings.
Key Features
- Embedded GPS
- Improved Narrowband Tx/Rx Co-site Performance Parameters
- AES 256 Encryption
- Rechargeable Lithium-Ion 7.0 Ah
- Compliant with the Universal Battery Charger (UBC) Family of Tactical Chargers
- Physical Parameters:
- Length: 8.50 inches (21.59 cm) (with battery attached, excluding antennas) (2M version), 8.65 in (21.97 cm) (with battery attached, excluding antennas) (20M version)
- Width: 2.65 inches (6.73 cm)
- Depth: 1.75 inches (4.45 cm)
- Weight: 2.30 lb (1043 g) — radio and battery
- Environmental Specifications:
- Operating Temperature: -31° to +55° C
- Storage Temperature: -33° to +71° C
- Immersion: 2M/20M
- Waveforms/Modes of Operation Dependent on Configuration of Radio
- TSM:
- Infrastructure-less MANET
- High-speed wireless IP networking
- Self-Forming, self-healing
- Scalable to 200+ nodes
- Robust in harsh environments
- Fast, seamless network join/merge
- Instant adaptation to network topology change
- AM/FM
- Situational Awareness
- Retransmission – NB onlyh
- TSM:
-
- Narrowband Channel:
- Frequency Range: 30 MHz–512 MHz
- Transmit Power: Up to 5 W in all frequencies
- Step Size: 5 kHz and 6.25 kHz
- Channel Bandwidth: 5 kHz, 12.5 kHz, 25 kHz (8.33 kHz future waveform)
- Wideband Channel:
- Transmit Power: Up to 2 watt
- Operating Frequencies: L-UHF: 225–450 MHz, U-UHF: 698–970 MHz, L/S Bands: 1250–2600 MHz
- Network Throughput: up to 16 Mbps
- Encryption Security: AES-256
- Dedicated PTT Voice Channels: supports up to 32 talk groups, AMR 5.9 or MELPe
- Occupied Bandwidth: 1.2 MHz – 40 MHz
- Net Entry Time < 1 sec
- Supports up to 8 hops for voice and data
- Scalable to 200+ nodes in a single RF channel
- Unicast, Multicast, Broadcast IP data support
- Multiple simultaneous streaming videos
- Position Location Information (PLI) support
- OTA Remote Control
- Narrowband Channel:
