WaveLINK™
Thales WaveLINK
Thales WaveLINK Information Sheet

Information Sheet
(get PDF)

Global Satellite Global Maritime Distress & Safety System (GMDSS) on Iridium Certus™

All your safety tools in a single, easy to use display

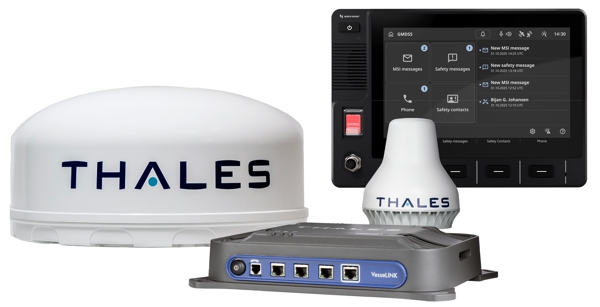

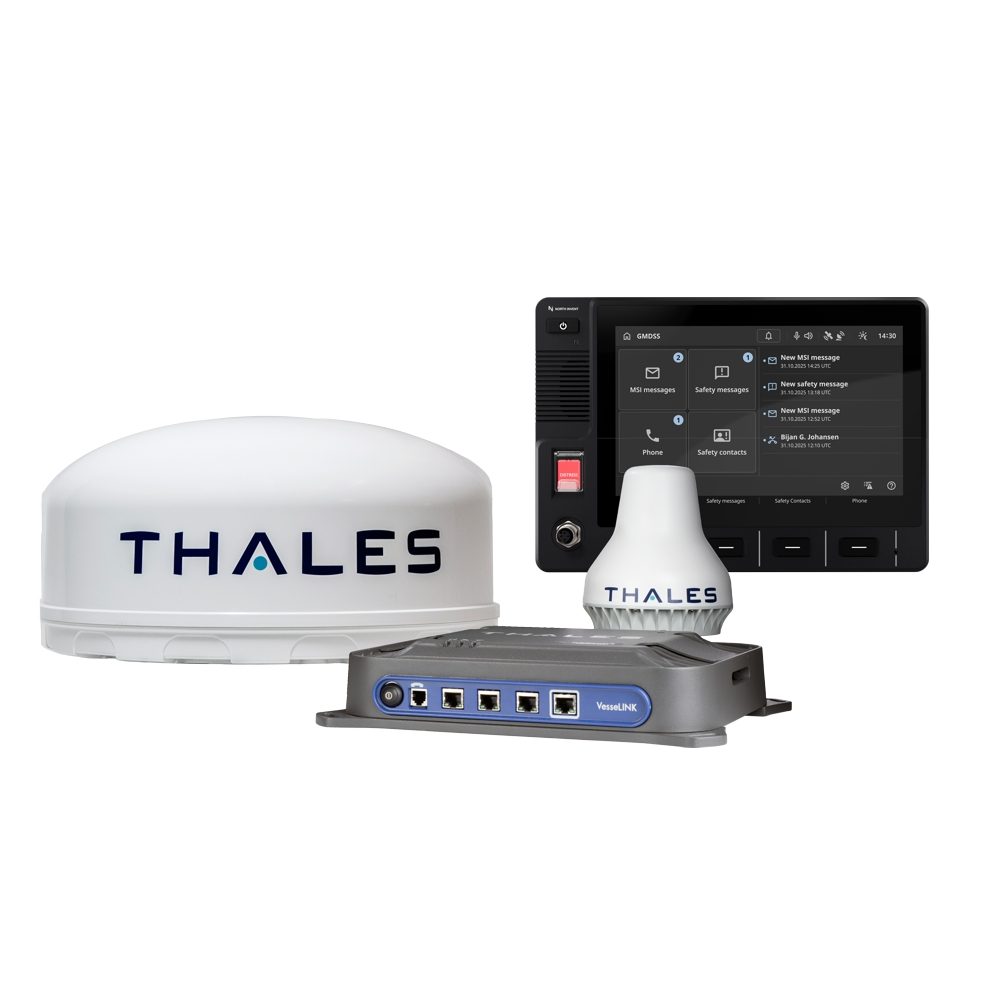

The WaveLINK GMDSS Terminal, which includes the WaveLINK panel computer and the Thales VesseLINKTM on Iridium Certus GMDSS, is a truly global, future proof, maritime safety solution. Going beyond mandatory GMDSS features, including distress alerting, safety voice, maritime safety information (MSI), long-range identification
and tracking (LRIT), and the ship security alert system (SSAS), WaveLINK provides a reliable tool as your safety and business critical communications hub. Additionally, the system is equipped with Open-Bridge front-end software, ensuring intuitive operation and seamless integration for vessel owners already familiar with the platform. WaveLINK enables real-time transmission of safety information and voice communications to search and rescue teams, as well as other vital solutions
such as fishery reporting.

Technical Specifications

KEY FEATURES

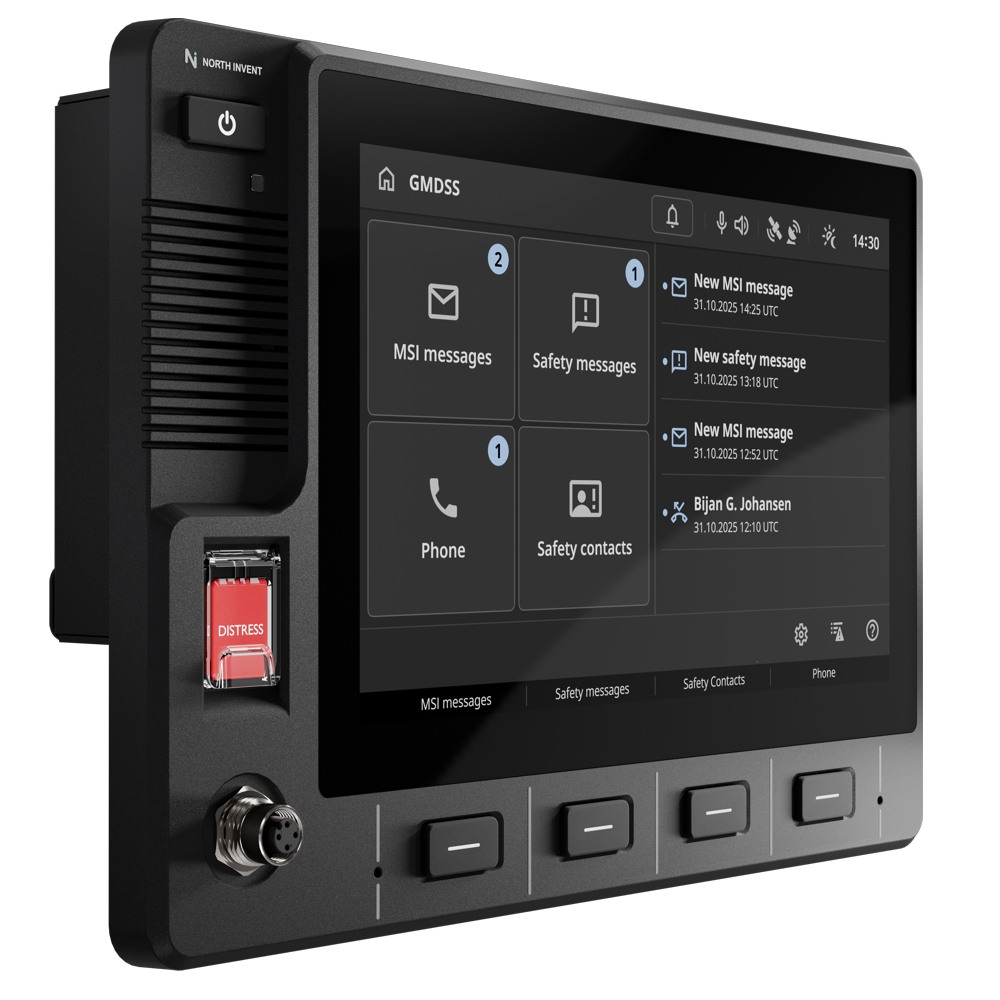

  • 10.1 in PCAP Mulit-Touch Display
  • Programmable Soft-Keys + Hard Buttons
  • Distress Voice, Alerts and MSI

PHSICAL PARAMETERS

  • Display Size:
    • 10.1 in – Active Area
    • Width: 8.54 inches (216.96mm)
    • Height: 8.27 inches (135.60mm)
  • Overall Dimensions:
    • Width: 11.81 in (300 mm)
    • Height: 8.27 in (210 mm)
    • Depth: 1.77 in (45 mm)
    • Net/Gross Weight: 3.75/5.51 lb (1.7/2.5 kg)
    • Depth: 9.0 (excluding knobs and connectors)
    • Weight: 4.25 pounds

ENVIRONMENTAL SPECIFICATIONS:

  • Power Consumption: ~35 W
  • IP31 from front given correct mounting and sealing
  • Operating/Storage Temperature: -20/+55° C
  • Matching Standards: (Planned)
  • IEC 60945, IEC 60529 (IP)
  • IACS E10
  • EMC Directive-2014/30/EU
  • RoHS
  • REACH
    *Compliant to a selection of MIL standards

WIDEBAND CHANNEL

  • Resolution: 1280 x 800 pixels (Max)
  • Response Time: 13 ms (typ)
  • Contrast Ratio: 800:1 (typ)
  • CPU: Intel® Atom x6425E @ 2.0 GHz (2.7 GHz)
  • Light Intensity: 900 cd/m2 (typ)
  • Viewing Angle: +88°
  • Storage: 64 GB eMMC 5.1 onboard flash
  • Supply Voltage: 10–32 VDC
  • 2 x 10/100/1000 Ethernet RJ45 with TPM
  • 2.0 1 x DisplayPort (DP++) output
  • 1 x USB 3.1 Gen 2 Type C
  • 2 x USB 3.1 Gen 2 Type A
  • 1 x RS232 (9-pin DSUB)
  • 1 x RS422 (9-pin DSUB)
  • GPIO Distress Button
  • SSAS buttons
  • BAM Rele
  • BAMS integration Display/Printer (RS-422)
  • Extra Output RS-422 (e.g. ECDIS
  • GPS NMEA Output (RS-422)
